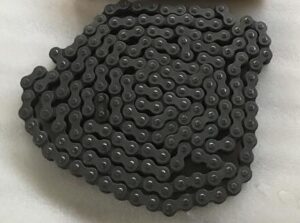

Chain 160R11H 160R12H 160R13H 160R14H 160R15H

We are exporters of bearings, selling high quality bearings, made in China, if you have bearing requirements, please ask us for an inquiry.

sales@supply-bearings.com www.supply-bearings.com

Bearing size and model

Diameters_ _Dimensions__Weight Lbs. (Approx.)

No. Teeth	Catalog Number	Bushing	Outside Diameter	Pitch Diameter	Type	Max. Bore	L,	L2	C	Y	G	X	T	With Hub
19	35JA19	JA	2.470	2.278	B	114	11/8	1%	2沁	5364	2964	58	0.168	1.18
20	35JA20	JA	2.590	2.397	B	114	1%	1%	2沁	5364	2964	58	0.168	1.22
21	35JA21	JA	2.710	2.516	B	114	1%	1%	2沁	5364	2964	58	0.168	1.24
22	35JA22	JA	2.830	2.635	B	114	1%	1%	2沁	5364	2964	58	0.168	1.26
23	35JA23	JA	2.950	2.754	B	114	1%	1%	2沁	5364	2964	58	0.168	1.28
24	35JA24	JA	3.070	3.873	B	114	1%	1%	2沁	5364	2964	58	0.168	1.30
25	35JA25	JA	3.190	2.992	B	114	1%	1%	2沁	5364	2964	58	0.168	1.34
26	35JA26	JA	3.310	3.111	B	114	1%	1%	2沁	5364	2964	58	0.168	1.36
27	35JA27	JA	3.430	3.230	B	114	1%	1%	2沁	5364	2964	58	0.168	1.38
28	35JA28	JA	3.550	3.349	B	114	1%	1%	2沁	5364	2964	58	0.168	1.42
30	35JA30	JA	3.790	3.588	B	114	1%	1%	2沁	5364	2964	58	0.168	1.46
32	35JA32	JA	4.030	3.826	B	114	1%	1%	2沁	5364	2964	58	0.168	1.68
35	35JA35	JA	4.390	4.183	B	114	1%	1%	2沁	5364	2964	58	0.168	1.94
36	35SH36	SH	4.510	4.303	B	158	1716	m	2%	1564	4沁	%	0.168	2.06
40	35SH40	SH	4.990	4.780	B	158	1716	m	2%	1564	4沁	%	0.168	2.18
42	35SH42	SH	5.230	5.018	B	158	1716	m	2%	1564	4沁	%	0.168	2.26
45	35SH45	SH	5.590	5.376	B	158	17/s	m	2%	1564	4沁	%	0.168	2.40
48	35SH48	SH	5.950	5.734	B	158	17/s	17/s	2%	1564	4沁	%	0.168	2.58
54	35SH54	SH	6.660	6.449	B	158	17/s	m	2%	1564	4沁	%	0.168	2.88
60	35SH60	SH	7.380	7.165	B	158	17/s	m	2%	1564	4沁	%	0.168	3.28
70	35SH70	SH	8.580	8.358	B	158	17/s	m	2%	1564	4沁	%	0.168	3.94
72	35SH72	SH	8.810	8.597	B	158	17/s	m	2%	1564	4沁	%	0.168	4.14
80	35SH80	SH	9.770	9.552	B	158	17/s	17/s	2%	1564	4沁	%	0.168	4.68
84	35SH84	SH	10.250	10.029	B	158	17/s	m	2%	1564	4沁	%	0.168	4.86
96	35SH96	SH	11.680	11.461	B	158	17/s	m	2%	1564	4沁	%	0.168	6.38
112	35SH112	SH	13.590	13.371	B	158	17/6		21Xe	1564	%	%	0.168	7.60

No. Teeth	Catalog Number	Bush- ing	Diameters		Type	Max. Bore	Dimensions						Weight Lbs. (Approx.)
			Outside Dia.	Pitch Dia.			Dimensions						Weight Lbs. (Approx.)
			Outside Dia.	Pitch Dia.			OL	L	C	H	P	T(nom)	With Hub	Rim Only
19	35H19	H	2.470	2.278	3	1-1/2	1-1/2	1-1/4	1/16	2-1/2	1-5/32	0.168	1.3	0.5
20	35H20	H	2.590	2.397	3	1-1/2	1-1/2	1-1/4	1/16	2-1/2	1-5/32	0.168	1.3	0.5
21	35H21	H	2.710	2.516	3	1-1/2	1-1/2	1-1/4	1/16	2-1/2	1-5/32	0.168	1.4	0.6
22	35H22	H	2.830	2.635	3	1-1/2	1-1/2	1-1/4	1/16	2-1/2	1-5/32	0.168	1.5	0.7
23	35H23	H	2.950	2.754	3	1-1/2	1-1/2	1-1/4	1/16	2-1/2	1-5/32	0.168	1.5	0.7
24	35H24	H	3.070	2.873	3	1-1/2	1-1/2	1-1/4	1/16	2-1/2	1-5/32	0.168	1.6	0.8
25	35H25	H	3.190	2.992	3	1-1/2	1-1/2	1-1/4	1/16	2-1/2	1-5/32	0.168	1.6	0.8
26	35H26	H	3.310	3.111	3	1-1/2	1-1/2	1-1/4	1/16	2-1/2	1-5/32	0.168	1.6	0.8
28	35H28	H	3.550	3.349	3	1-1/2	1-1/2	1-1/4	1/16	2-1/2	1-5/32	0.168	1.7	0.9
30	35H30	H	3.790	3.588	3	1-1/2	1-1/2	1-1/4	1/16	2-1/2	1-5/32	0.168	1.7	0.9
32	35H32	H	4.030	3.826	3	1-1/2	1-1/2	1-1/4	1/16	2-1/2	1-5/32	0.168	1.7	0.9
35	35H35	H	4.390	4.183	3	1-1/2	1-1/2	1-1/4	1/16	2-1/2	1-5/32	0.168	1.8	1.0
36	35H36	H	4.510	4.303	3	1-1/2	1-1/2	1-1/4	1/16	2-1/2	1-5/32	0.168	1.8	1.0
40	35H40	H	4.990	4.780	3	1-1/2	1-1/2	1-1/4	1/16	2-1/2	1-5/32	0.168	2.0	1.2
42	35H42	H	5.230	5.018	3	1-1/2	1-1/2	1-1/4	1/16	2-1/2	1-5/32	0.168	2.0	1.2
45	35H45	H	5.590	5.376	3	1-1/2	1-1/2	1-1/4	1/16	2-1/2	1-5/32	0.168	2.2	1.4
48	35H48	H	5.950	5.734	3	1-1/2	1-1/2	1-1/4	1/16	2-1/2	1-5/32	0.168	2.3	1.5
54	35H54	H	6.660	6.449	3	1-1/2	1-1/2	1-1/4	1/16	2-1/2	1-5/32	0.168	2.6	1.8
60	35H60	H	7.380	7.165	3	1-1/2	1-1/2	1-1/4	1/16	2-1/2	1-5/32	0.168	3.1	2.3
70	35H70	H	8.580	8.358	3	1-1/2	1-1/2	1-1/4	1/16	2-1/2	1-5/32	0.168	3.6	2.8
72	35H72	H	8.810	8.597	3	1-1/2	1-1/2	1-1/4	1/16	2-1/2	1-5/32	0.168	3.8	3.0
80	35H80	H	9.770	9.552	3	1-1/2	1-1/2	1-1/4	1/16	2-1/2	1-5/32	0.168	4.6	3.8
84	35H84	H	10.250	10.029	3	1-1/2	1-1/2	1-1/4	1/16	2-1/2	1-5/32	0.168	4.8	4.0
96	35H96	H	11.680	11.461	3	1-1/2	1-1/2	1-1/4	1/16	2-1/2	1-5/32	0.168	6.1	5.3
112	35H112	H	13.590	13.371	3	1-1/2	1-1/2	1-1/4	1/16	2-1/2	1-5/32	0.168	7.6	6.8

No. Teeth	Catalog Number	Bushing	Diameter		Max. Bore	Dimensions		Type	Weight Lbs. (Approx.)
No. Teeth	Catalog Number	Bushing	Outside Diameter	Pitch Diameter	Max. Bore	L	C	Type	Rim Only	Bushing Only
11	160BTB11	2517	8.011	7.099	212	134	4K	B	9.0	3.5
12	160BTB12	3020	8.664	7.727	3	2	5K	B	11.0	6.5
13	160BTB13	3020	9.314	8.357	3	2	5X	B	13.0	6.5
14	160BTB14	3020	9.963	8.988	3	2	5K	B	16.0	6.5
15	160BTB15	3535	10.609	9.620	312	312	612	B	25.0	14.0
16	160BTB16	3535	11.255	10.252	312	312	612	B	28.0	14.0
17	160BTB17	3535	11.899	10.885	312	312	612	B	32.0	14.0
18	160BTB18	3535	12.543	11.518	312	312	612	B	35.0	14.0
19	160BTB19	3535	13.185	12.151	312	312	612	B	39.0	14.0
21	160BTB21	3535	14.470	13.419	312	312	612	B	48.0	14.0
26	160BTB26	3535	17.671	16.593	312	312	612	B	68.0	14.0
35	160CTB35	4040	23.422	22.312	4	4	734	C	118.0	14.0
45	160CTB45	4040	29.802	28.671	4	4	734	C	186.0	22.0
60	160CTB60	4545	39.362	38.215	412	412	834	C	292.0	30.0
